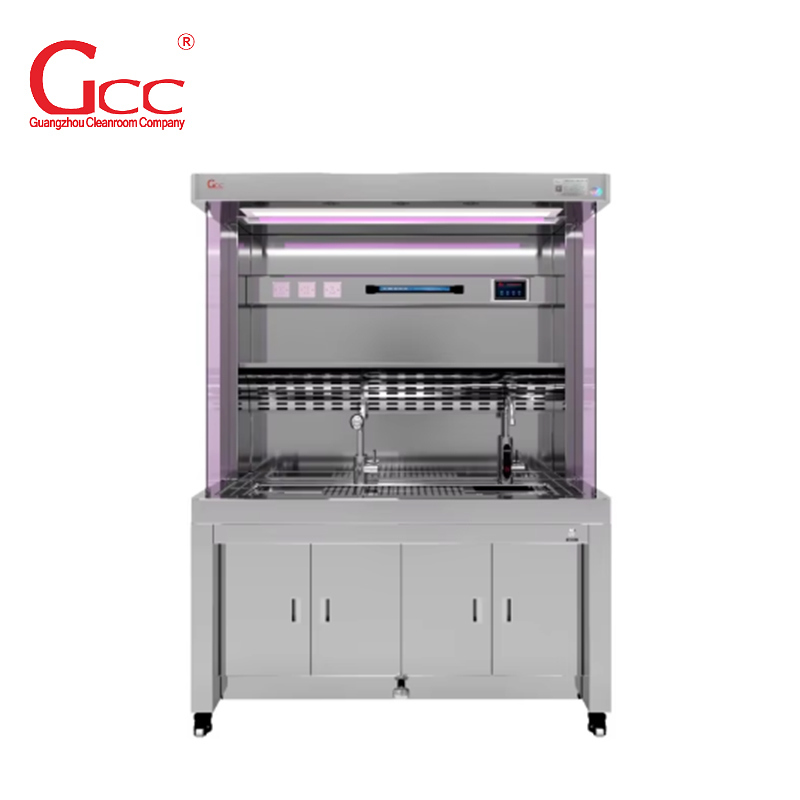

The Foot Pedal Controlled Grossing Station is designed for modern histopathology and anatomy laboratories that demand safety, hygiene, and ergonomic efficiency.
Made entirely of 304 stainless steel (≥1.0mm thickness), the station combines a durable structure with advanced airflow and water management systems to ensure a formaldehyde-free and clean dissection environment.
Featuring a foot pedal spray rinse system, touch-screen ventilation control, UV disinfection timer, and down draft exhaust, this workstation guarantees both operator comfort and laboratory compliance with ISO & GMP standards.
Features
1.High-Grade Stainless Steel Construction
2.Advanced Ventilation System
3.Fresh Air Laminar Flow Design
4.Smart Touch Control Panel (4.3")
5.Foot Pedal & Spray Rinse System
6.Integrated UV Disinfection
7.Ergonomic & Safe Design
8.Optional Accessories
Technical Parameters
| Item |
Specification |
| Material |
304# Stainless Steel (≥1.0mm) |
| Structure |
Open-top design, without front sliding glass |
| Sink |
One-piece deep-formed stainless steel sink |
| Airflow |
Down Draft Exhaust + Fresh Air Laminar Flow |
| Air Volume |
1500–2000 m³/h |
| Air Velocity |
≥0.8 m/s |
| Lighting |
LED Panel Light ×1 |
| UV Lamp |
≥1300 mW/m², Timer Adjustable |
| Touch Screen |
4.3-inch, Multi-speed Fan Control |
| Foot Pedal |
Spray Rinse + Water Control |
| Accessories |
Bone Grinder ×1, Ruler Board ×1, Magnetic Strip ×1, Waterproof Sockets ×3 |
| Weight |
Approx. 302 kg |
| Power Supply |
220V / 50Hz (Customizable) |
| Optional |
Exhaust fan & ducting (quoted separately) |
FAQ
Q1: Is the exhaust fan included in the price?
A1: No, the fan and duct accessories are optional and quoted separately according to your lab setup.
Q2: Can the table size or structure be customized?
A2: Yes, we offer OEM and ODM services to meet your laboratory layout and requirements.
Q3: How do I clean and maintain the grossing station?
A3: All stainless surfaces can be wiped with ethanol or neutral detergents. The perforated board is removable for easy cleaning.
Q4: What is the UV lamp lifespan?
A4: The UV sterilization lamp lasts around 8,000 hours and is easy to replace.
Q5: Does it require installation?
A5: The station is shipped fully assembled. Only exhaust and water connections are needed for setup.
